Shenzhen Lean Kiosk Systems Co., Ltd. frank@lien.cn 00-86-18664576557
Product Details
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8501A
Payment & Shipping Terms
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
21.5 Inch Screen: |
Capacitive Touchable |
Function: |
Room Key Encoder |
Type: |
21.5 Inch Free Standing |
Function 2: |
Face Recognition |
Usage: |
Hotel Check In |
Receipt Printer: |
Support |
Camera: |
With MIC |
OS: |
Android/windows |
Support: |
Barcode Scanner |
21.5 Inch Screen: |
Capacitive Touchable |
Function: |
Room Key Encoder |
Type: |
21.5 Inch Free Standing |
Function 2: |
Face Recognition |
Usage: |
Hotel Check In |
Receipt Printer: |
Support |
Camera: |
With MIC |
OS: |
Android/windows |
Support: |
Barcode Scanner |

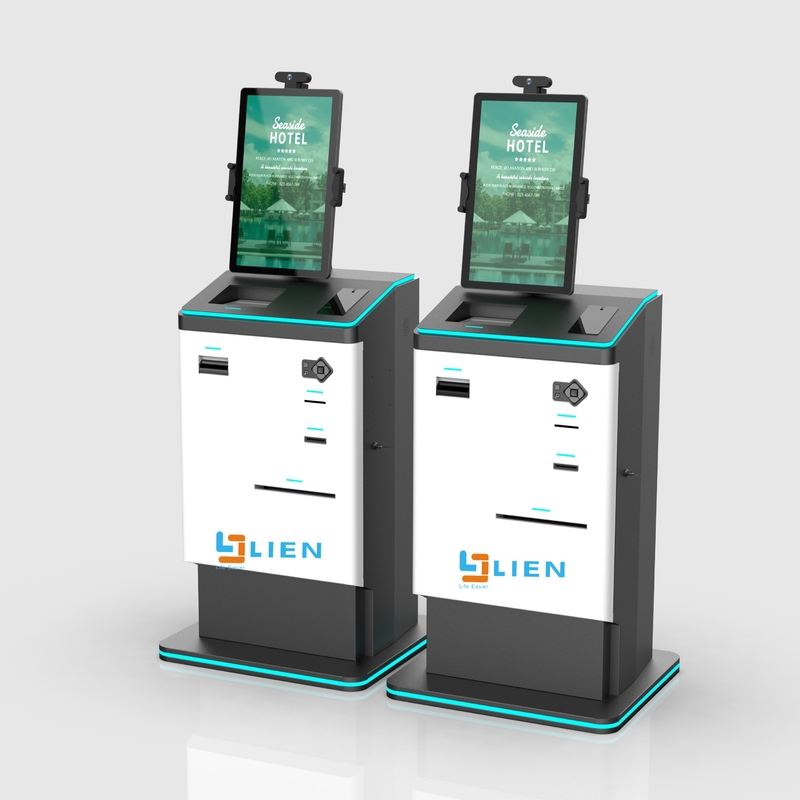

21.5Inch Self Checkout Terminal Support Passport Scanner Key Encoder
21.5 Inch Hotel Check In And Check Out Kiosk Support Passport Scanner And Room Key Encosder
Self Check-in Process
Guests start the self check-in by entering their reservation details into the kiosk terminal to retrieve the booking from system.
They see a summary of their reservation details including the room type, the total amount due at check-in, and any city taxes or resort fees which may be applicable.
Additional guest names can be added to the reservation along with add-ons such as breakfast or dinner options.
Guests will be required to pay upfront or pre-authorise their credit card using the Payment Terminal with chip and pin.
After completing the payment, they can cut their keys by placing room key cards.
Self Check-out Process
Guests can self check-out by entering their last name and room number on the kiosk screen.
The guest folio is retrieved from system and guests can review the summary of their bill including any additional on-property purchases made during their stay.
If there is an unpaid balance, they will be requested to settle payment using the Payment Terminal integrated with the kiosk.
After the payment is completed, guests can either print their bill or request an electronic invoice to be sent by email.
Guests will be automatically checked out updating the housekeeping staff that the room is now ready to be cleaned.
| Processor System | CPU | Intel Celeron N3350 / i3 7100U |
| Frequency | 2.4 GHz | |
| Cache | 2 / 3 MB | |
| Memory | Technology | DDR3L 1600 MHz / DDR4 2133MHz |
| Max. Capacity | 8 / 32 GB | |
| Socket | 1 x 204-pin SO DIMM | |
| Display | Panel Size | 21.5" |
| Resolution | 1920x1080 | |
| Viewing Angle | Horizontal : 89 / Vertical : 89 degree | |
| Brightness | 250 cd/m2 | |
| Color Support | 16.7M | |
| Contrast Ratio | 3000 | |
| Response Time | 25ms | |
| Touchscreen | Touchscreen Type | Projected Capacitive (PCAP) |
| Surface Hardness | ≧6H | |
| Transparency | 0.85 | |
| I/O Interface | USB | USB 3.0 x 2 / USB 3.0 x 4 |
| Ethernet | Speed | 10/100/1000 Mbps |
| Controller | Intel i211AT x 2 / Intel i219V + i211AT | |
| Connector | RJ45 x 2 | |
| Audio | Chipset | Realtek ALC267 / Realtek 269 |
| Speaker | Internal : Speaker 8Ω/2W x2 | |
| Storage | SSD | Supports one 2.5” SATA HDD / M.2 SSD |
| Printer | 2" (58mm) | |
| Auto Loading function | ||
| Paper near-end detection | ||
| Scanner | Passport/ID | CMOS 3.0 Megapixel(2048*1536), 400 dpi |
| Camera | ID Camera | 500M pixels |
| Scanner | Honeywell | CCD-2D |
| or equivalent | 752x480 pixel CMOS area imager | |
| RFID | 13.56M Hz Mifare ISO14443A Standard | |
| Read only | ||
| RF Card Dispenser / Collector with RF Writer/Reader | ||
| Credit Payment | Customized payment terminal holder | |
| Cash module | Coin Acceptor | Coin Parameters : Diameter 17~28mm ; Thickness 1.5~2.4mm |
| Coin Dispenser | Capacity: around 500 coins | |
| Bill Acceptor | 500 bills | |
| Bill Dispenser | Bill capacity: around 800-1000 bills, speed: 2.5 bill/sec | |
| Power | Power Type | Adapter 250W/24V |
| Power Input | AC 100~240V @50~60Hz | |
| Battery | Lithium 3 V / 220 mAH | |
