Product Details
Place of Origin: China
Brand Name: LKS or OEM
Certification: CE, FCC
Model Number: LKS8235B
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Function1: |
Thermal Printing |
Function2: |
Barcode /QR Code Scanning |
Function3: |
Card Reader/Receipt/Dispenser |
Function4: |
Payment Device |
Function5: |
Web Camera |
Function: |
OEM |
Appearance: |
Floor Stand Kiosk |
Screen: |
TFT LCD Capacity Touch Screen |
System: |
Windows/Android OS |
Function1: |
Thermal Printing |
Function2: |
Barcode /QR Code Scanning |
Function3: |
Card Reader/Receipt/Dispenser |
Function4: |
Payment Device |
Function5: |
Web Camera |
Function: |
OEM |
Appearance: |
Floor Stand Kiosk |
Screen: |
TFT LCD Capacity Touch Screen |
System: |
Windows/Android OS |

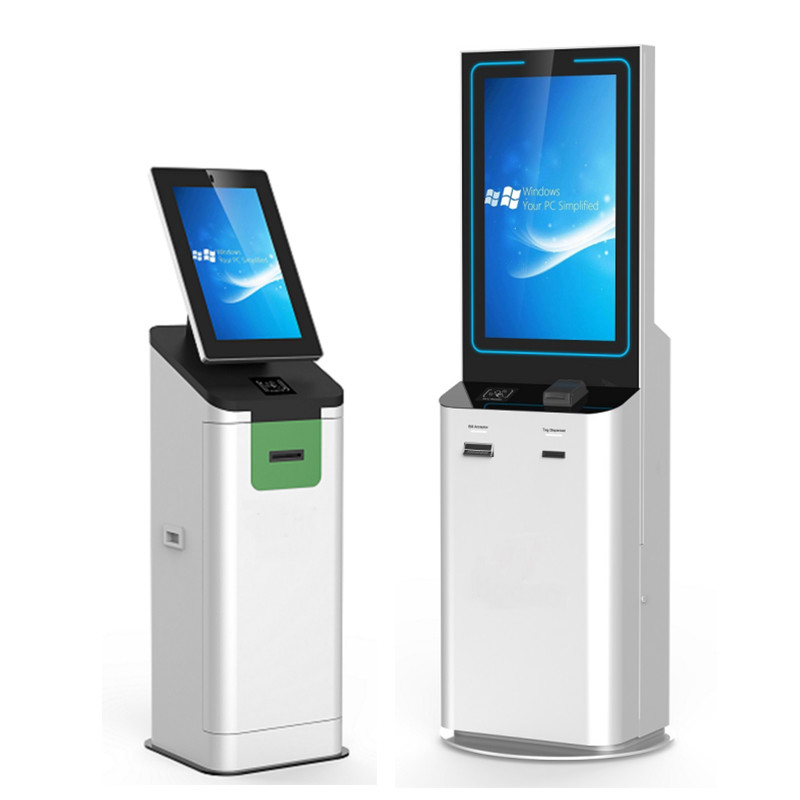

2.8ghz Self Ordering Kiosk Terminal TFT LCD Display Touch Screen
TFT LCD Display Touch Screen Restaurant Hotel Self Ordering Payment Kiosk Terminal
Standard hardware components List:
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Cashcode Bill acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way | |
| Escrow | One banknote | |
| Capacity | 1000 notes Max | |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
Other Optional hardware components List as following:
Appearance, logo and function modules could be fully customized!
Multi-application:
Main designs of Custom Anti-Vandalism, Dustproof Internet, Floor Standing Self Service Payment Kiosk
