Shenzhen Lean Kiosk Systems Co., Ltd. frank@lien.cn 00-86-18664576557
Product Details
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8205C
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Material: |
Cold-rolled Steel Or Stainless Steel Or Others |
Material Feature: |
Anti-vandal, Anti-dust,Anti-acid |
Application: |
Indoor |
Size Of The Screen: |
7 ~ 84 Inch Upon Customers’ Request |
Touch Screen: |
IR / SAW / Capacitive |
Power Supply: |
110-240V Or Optional |
Function: |
Card Reader,Information And Advertising Displaying |
Card Type: |
Credit Or Debit Card |
Card Insert Way: |
Auto Or Manual As Optional |
Enclosure: |
Desktop |
Material: |
Cold-rolled Steel Or Stainless Steel Or Others |
Material Feature: |
Anti-vandal, Anti-dust,Anti-acid |
Application: |
Indoor |
Size Of The Screen: |
7 ~ 84 Inch Upon Customers’ Request |
Touch Screen: |
IR / SAW / Capacitive |
Power Supply: |
110-240V Or Optional |
Function: |
Card Reader,Information And Advertising Displaying |
Card Type: |
Credit Or Debit Card |
Card Insert Way: |
Auto Or Manual As Optional |
Enclosure: |
Desktop |

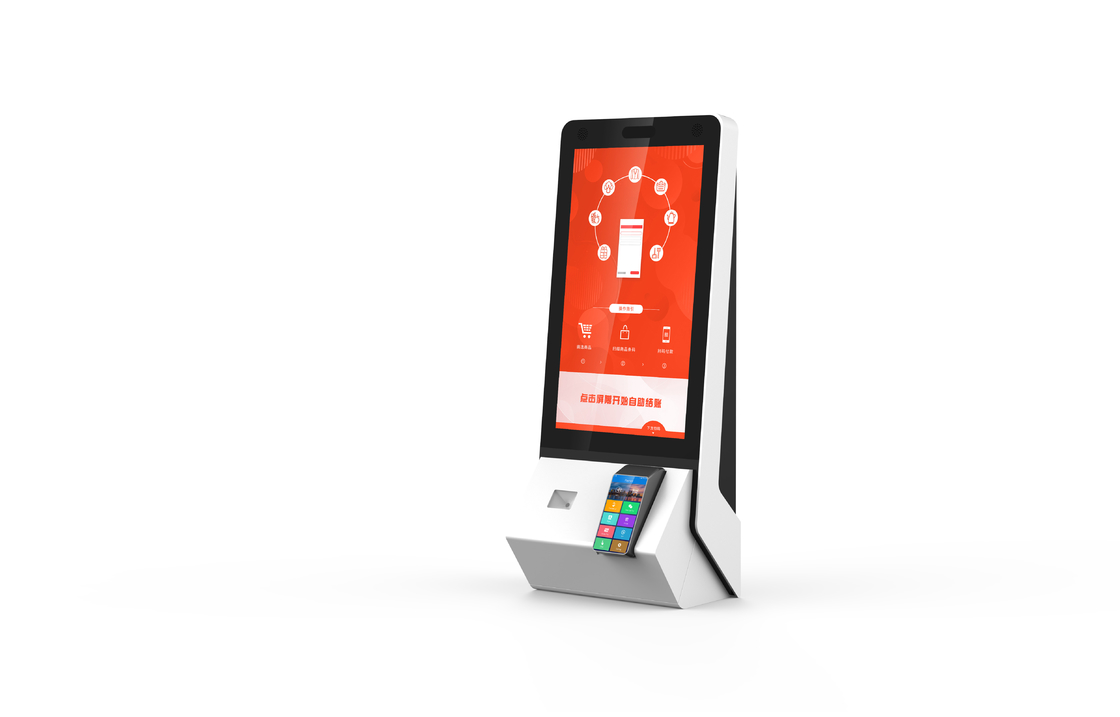

Anti Dust Indoor Ordering Kiosk Highly Responsive For Credit Card
Standard hardware components List is as following:
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Card reader | Main Fuction | Combination of Magnetic/IC/RFID card Reading |
| Communication Interface | RS232C / USB (HID) | |
| Card Dimmensions | Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm | |
| Magnetic Head Life | 500,000/min | |
| IC Card Touch Port | 300,000/min | |
| Power Voltage | DC 24V±5% | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
Other Optional hardware components List is as following:
24 / 7 operation
Cost less Solution
Compact Appearance
