Product Details
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8501A
Payment & Shipping Terms
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
12 Inch Screen: |
Capacitive Touchable |
22 Inch Screen: |
LED / LCD TFT Monitor |
Type: |

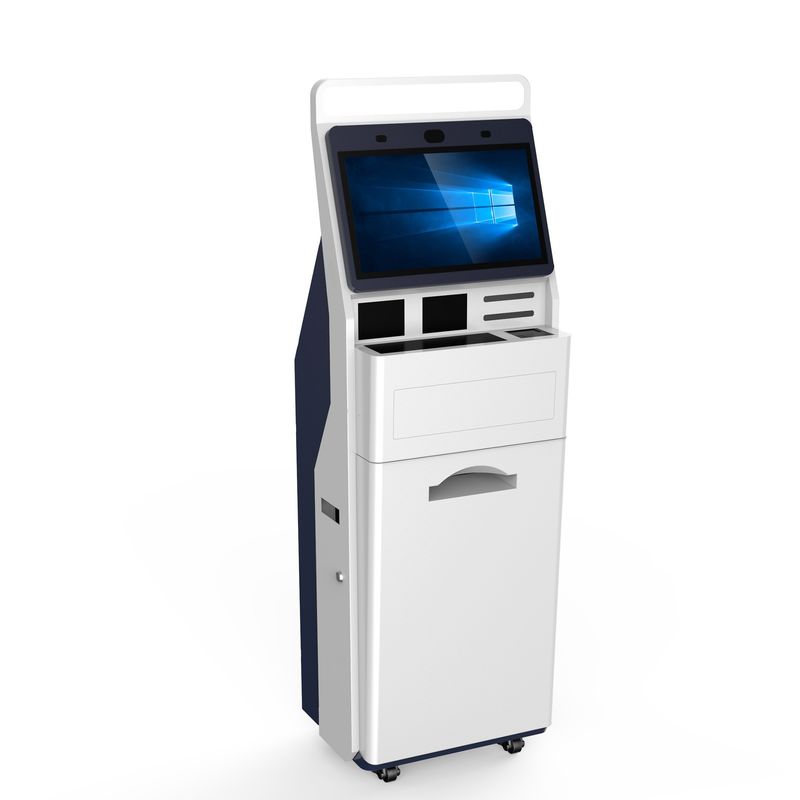

Free Standing Dual Screen Kiosk |
Cheque: |
Scan And Storage |
Billnote: |
Validate And Accept |
Receipt Printer: |
80 Mm Width |
12 Inch Screen: |
Capacitive Touchable |
22 Inch Screen: |
LED / LCD TFT Monitor |
Type: |
Free Standing Dual Screen Kiosk |
Cheque: |
Scan And Storage |
Billnote: |
Validate And Accept |
Receipt Printer: |
80 Mm Width |
| No.1 | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
| CPU | Intel G3260 | |||
| RAM | 4GB | |||
| HDD | 500G | |||
| Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; | |||
| PC Power Supply | HUNTKEY | |||
| 2 | Operation System | Windows7(without license) | ||
| 3 | Operation panel | BOE | Screen Size | 23 inch |
| Pixel Number | 1920*1080 | |||
| Pixel pitch | 0.2652(H) ×0.2652(V) mm | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/85°/85° | |||
| LED Life Time | Min. 30000hrs | |||
| 4 | Operation panel | Auo | Screen Size | 17 inch |
| Pixel Number | 1280*1024 | |||
| Brightness | 350cd/m2 | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| LED Life Time | Min. 40000hrs | |||
| 5 | Touch Screen | EG17 | Screen Diagonal | 17 inch |
| Touch technology | Capacitive | |||
| Touch Points | Multi-finger | |||
| Glass Hardness | 6H | |||
| Min.Reprot Rate | 100points/sec | |||
| Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH | |||
| 6 | Card Reader ( or POS) |
Customer provided POS, or we provide the card reader with EMV certificated | ||
| 7 | Passport Reader | Image acquisition | Size127*88 mm, CMOS 5 million pixels(2592*1944),Resolution 500 DPI | |
| Image format | BMP,PNG,JPEG | |||
| Automatic identification and raed | Support automatic induction identification and raed of passport | |||
| Support OCR | ||||
| 8 | Card dispenser | Support card type | Mifare 1 ,ISO1443A,ISO15693 read and write and dispensed | |
| Support card size | L:85±0.5mm,W:54±0.5mm,T:07~1.0MM | |||
| Card recycling | Yes | |||
| Card olume : | 200 pcs (card thickness based on 0.76mm ) | |||
| Card volume alarm: | less 10 pcs | |||
| 9 | Face recognition | CMOS sensor | 1/2.7 inch CMOS sensor | |
| Pixels | 1920(H) x 1080(V) 1080P | |||
| Template algorithm | ZKLive Face | |||
| Fill light way | Infrared light | |||
| 10 | Printer | Printer Method | Thermal printing | |
| Print width | 80mm | |||
| Speed | 250mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 11 | Power Supply | AC input voltage range | 100‐240VAC | |
| Frequency | 50Hz to 60Hz | |||
| Output over current protection | 110~130% | |||
| Operating temp. & humidity | ‐10~+50,20%~90%RH (noncondensing) | |||
| 12 | Speaker | Dual channel amplified speakers for Stereo , 8Ω 5W. | ||
| 13 | KIOSK Cabinet | LKS | Dimention | decided when finish production |
| Color | Optional by customer | |||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 2.Color and LOGO are upon customers' requests. | ||||
| 14 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. | ||
| 15 | Packing | Security Packing Method with Bubble Foam and Wooden Case | ||
