Product Details
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8501A
Payment & Shipping Terms
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
19 Inch Screen: |
LED / LCD TFT Monitor |
Type: |
Free Standing |
Support: |
Passport Scanner |
Receipt Printer: |
80 Mm Width |
Color: |
Customized |
Support: |
QR Code Scanner |
Card Dispenser: |
Yes |
19 Inch Screen: |
LED / LCD TFT Monitor |
Type: |
Free Standing |
Support: |
Passport Scanner |
Receipt Printer: |
80 Mm Width |
Color: |
Customized |
Support: |
QR Code Scanner |
Card Dispenser: |
Yes |

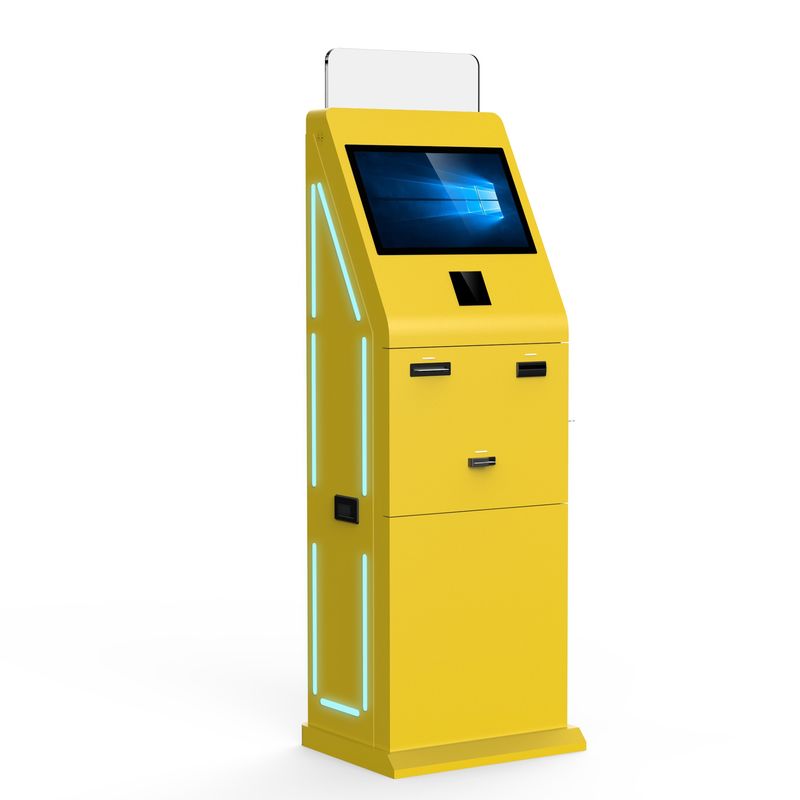

Expedite guest service with self-service kiosk check-in, room key encoding, check-out. No more long lines at the front desk.
A Resort Kiosk that Elevates the Guest Experience
Simplify check-in and check-out, optimize staff productivity and enhance the guest experience. More properties turn to kiosks to reduce overhead and offer more self-service options.
With hotel Kiosk, it’s easy to elevate service levels without adding front-line staff.
Reduce Guest Wait Times
Eliminate front desk queues and help make travel more enjoyable by offering a fast and easy approach to efficient guest service.
| Image | Component | Specification |
|
PC | ♦CPU: Intel dual-core I3; ♦RAM: 4G; ♦SSD: 120G; ♦Graphics: Integrated Intel HD graphics, 4K support (features depends on processor); ♦Video-outputs: 1x HDMI, 2x DisplayPort ; ♦Other connectors: SD card reader, 2x audio (line out, mic) 4x USB 3.0, 2x USB 2.0, 1x eSATA/USB 2x Intel Gigabit LAN (RJ45), supports WOL 2x COM port (RS232 + RS232/RS422/RS485) 1x PS/2-Combo (supports mouse/keyboard) Connector for the external power button “Always on” Jumper, DC-input 12V+19V ♦PC power supply: External 90W fanless power adapter ♦Operation system: Compatible with Windows 7 / 8.1 /Win10 ♦Customer can install the O.S with license locally |
|
Card dispenser | ♦Power Supply: DC24V± 5% ♦Interface: TTL/RS232 ♦Card Tank Volume 175pcs @ 0.8mm; 130pcs for concavo-convex character number card; 350pcs @ 0.4mm thickness cards ♦Card size: 54 +/- 1.5mm cards relief; 85 +/- 1.5mm long card; 0.2-1.2mm thick card(adjustable) ♦Error Card Reclaim: 25pcs at 8mm thickness cards |
|
Camera | ♦HD 1080p video quality at 30 frames-per-second ♦ H.264 with scalable video coding (SVC) and UVC 1.5 encoding technology ♦90-degree diagonal field of view ♦ Logitech RightLight™ 2 technology and autofocus ♦ 4X digital zoom in Full HD ♦ Pan, tilt and zoom option controlled by software ♦ ZEISS® glass lens ♦Convenient privacy shutter ♦ Plug-and-play USB connectivity ♦Multiple mounting options |
|
Passport scanner | ♦Image Acquisition: Collection area 127*88 mm; Sensor CMOS 5 million pixels (2592*1944); Resolution 500 DPI ♦Image save: 24-bit clear color photos can be taken of the full page information page of the passport, Images collected under visible light (white light), infrared light, and ultraviolet light sources can be saved in various image formats such as BMP, PNG or JPEG and the photos will not contain light spots caused by reflections;At the same time, you can also save the electronic avatar photo from the certificate with the chip; ♦Identification(OCR): Supports image collection and information recognition of various ID documents such as ID cards, driving licenses, passports, Hong Kong and Macau passes, Taiwan compatriots permits, and driving permits; Support image collection and information recognition of ICAO9303 standard passports, visas and other travel documents, including machine-readable codes and other layout information; Supports reading 1D barcodes, Code 128, Code 39, EAN-13, etc.Support reading 2D barcodes, PDF 417, QR, DataMatrix™, etc. Photo recognition speed is less than 1 second |
