Shenzhen Lean Kiosk Systems Co., Ltd. frank@lien.cn 00-86-18664576557
Product Details
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8343
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: USD 800~20000 Units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Kiosk Type:: |
Kiosk Design Ideas |
Application:: |
Parking Lot |
Display: |
LCD,TFT, AUO Or Others |
Supported OS: |
Windows 7 Or Windows Xp /2003 Or Linux Or Unix |
Material Feature: |
Anti-dust, Anti-vandal |
Function: |
Credit Card/ QR Code Reader/RFID READER/ Receipt Printer |
Kiosk Type:: |
Kiosk Design Ideas |
Application:: |
Parking Lot |
Display: |
LCD,TFT, AUO Or Others |
Supported OS: |
Windows 7 Or Windows Xp /2003 Or Linux Or Unix |
Material Feature: |
Anti-dust, Anti-vandal |
Function: |
Credit Card/ QR Code Reader/RFID READER/ Receipt Printer |
Parking lot 15inch touch display Intelligent Self-service Parking Kiosk Terminal
Company Introdution
Shenzhen Lean Kiosk Systems Co.,LTD ( LKS for short as following ) is a professional kiosk manufacturer engaged in all kinds payment kiosk, information kiosk, touch screen kiosk, ticket dispenser kiosk, banking kiosk, simple ATM kiosk, advertising kiosk, outdoor kiosk, self-service vending machine etc.
LKS kiosk products have been widely applied to bank, hospital, cinema, super market, convenient store, shopping mall, restaurant, metro station, bus station, gas station, exhibition hall, museum, airport, real estate property and other public areas. LKS is with his own professional design team, R& D team, purchase team, production team, sales team, inspection team and after-sale services team. LKS pay more attention to the best quality products, quick response and warmest services to customers all over the world. We offers standard kiosk products as well as customization services to meet customer's specific requirements. With our experienced teams, we have the capability to design and develop the best quality products that will make you stand out against competitors. We are dedicated to working with you to provide solutions to suit your needs and applications.
Specification
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 15inch |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 15inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |

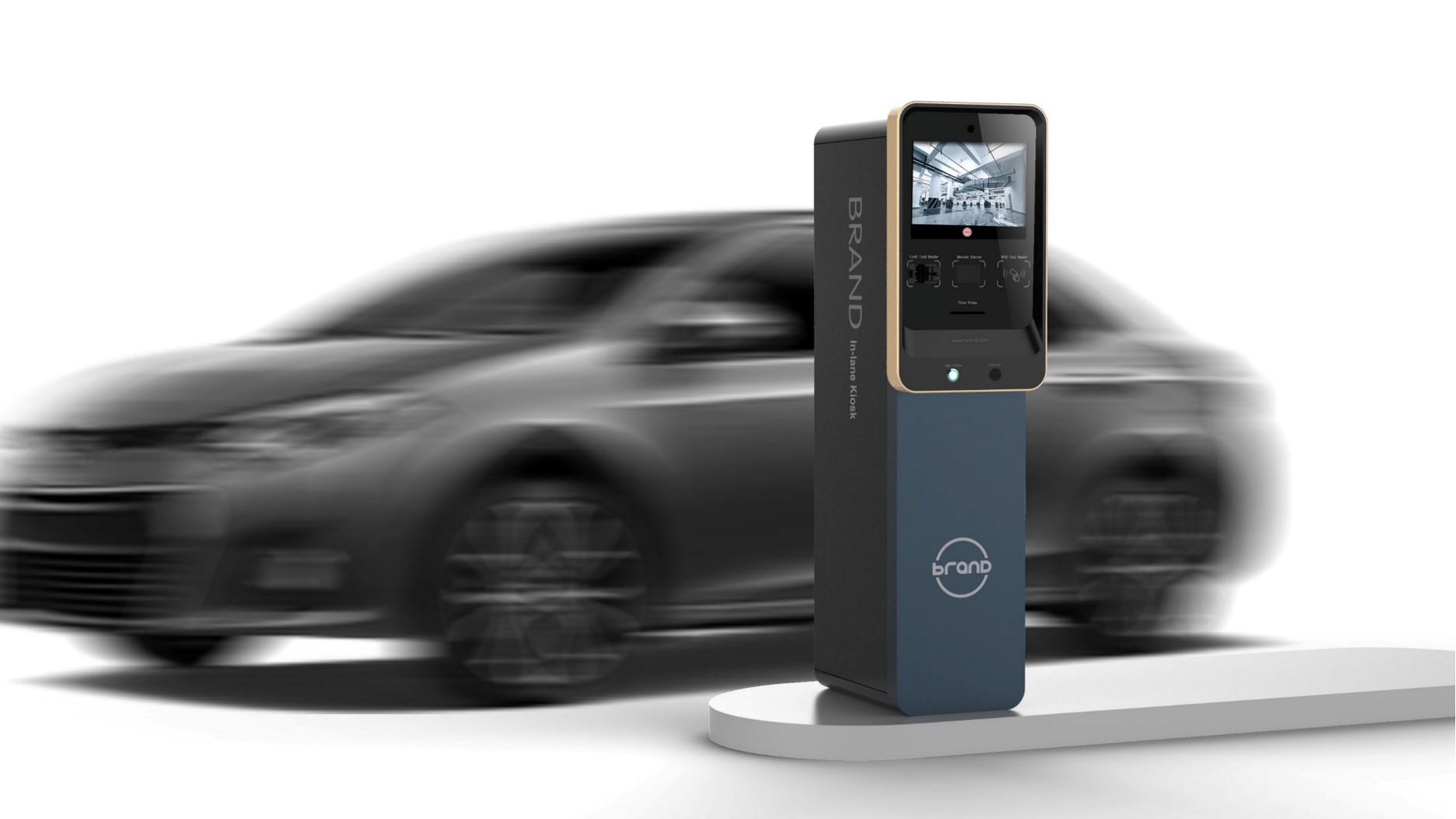

Pictuer of the Parking lot 15inch touch display Intelligent Self-service Kiosk Terminal
Standard hardware components List as following:
Certificates
Shipping terms
Q1: Are you a factory?
A: Yes, we are a manufacturer of ticket vending kiosks, parking lot equipment, payment kiosks, self-service terminals, and so on.
Q2: Do you accept OEM or ODM orders?
A: Yes, we welcome OEM and ODM orders.
Q3: Could you offer wholesale price?
A: Yes, of course. If you order large QTY, we can give you the bulk price.
Q4: I'm shopping at your company at the first time, how can I trust you?
A: If you have questions about our first cooperation, we fully understand. You are welcome to visit our company or our factory at any time.
Q5: I'm looking for some products which is not shown on your website, can you make me the special order?
A: We value the cooperation between us. Therefore, if you have a demand, we will be happy to provide you with a complete solution.
Q6: How to shipping my order?
A: We have strong cooperation with DHL, UPS, Fedex, EMS, TNT, China Air Post. You also can choose your own shipping forwarder.
Q7: How to be your agent in my country?
A: You must plan to build a long-term relationship with us. Authorization will depend on your purchase volume and the expected size of the regional market.
